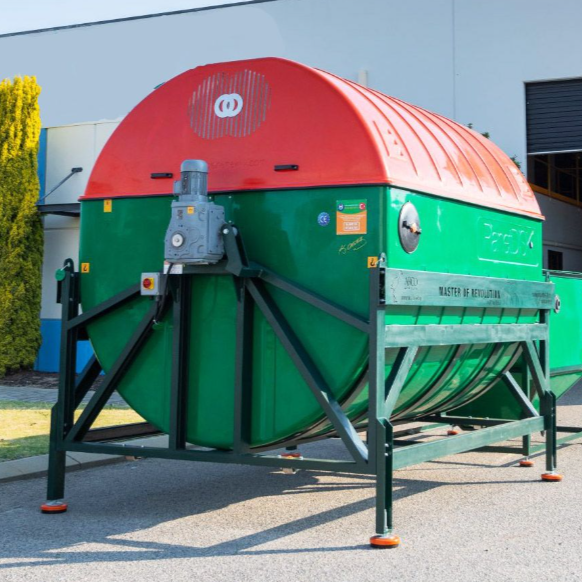

MX1 Model
THE SMALLEST CARBON FOOTPRINT AND ENERGY CONSUMING WASTEWATER TREATMENT TECHNOLOGY!
PlanetDISK® offers an environmentally friendly and sustainable solution for domestic wastewater treatment. It is a high-efficiency biological treatment system specially designed for various applications such as hotels, homes, villas, and rural areas. Operating within a capacity range of 10 to 4000 m³/day, the system uses Rotating Biological Disc (RBC) technology with a biofilm-based process. Its low energy requirement—just 0.37 kW per unit—makes it highly economical, providing up to 90% energy savings compared to SBR and activated sludge systems.
Certified with Utility Model, Design and Trademark Registrations, as well as CE certification, PlanetDISK® demonstrates both technical competence and high quality. The system is odorless, quiet, and easy to operate. It is built with durable materials like stainless steel and fiberglass, making it suitable for heavy-duty conditions. Thanks to its compact design, PlanetDISK® is easy to transport and install, and delivers stable, reliable performance even under sudden fluctuations in biological load.
Product Information
Domestic Sewage Treatment of houses, hotels, villages (Capacities: 10 – 4000 m³/day).
Each unit capacity = 10-80 m3/day depending on effluent and influent characteristics and wastewater temperature.
Each Unit power requirement= 0,37 kW.
Technology of PlanetDISK®
Rotating Biological Contactor (RBC) Technology.
Attach growth biofilm technology.
Features protected by Utility Model Certificate, Design Certificate, Registered Trade Mark, CE certificate.
Advantages of Rotating Biological Treatment (RBC) Technology
Economical – Low Energy Demand, up to 90 % energy saving compared to activated sludge, SBR system.
Due to system’s low energy demand, it is easily operable with solar energy.
Consistent Process Results even against shock biological loads up to 250% changes.
Easy Operation and Maintenance.
No annoying smell or noise problems.
Decades of lifetime due to selection of material.
Product Specifications and Terms
Fiber Glass Body.
Virgin material PP (Polypropylene) one-piece Discs (min 1,5 mm thickness, 2050 mm dia.).
Epoxy painted St37, galvanized or stainless steel frame.
Plastic spacers between discs.
SS or Galvanized steel structure rotor cage + 17 mm thick one piece PP plate.
Heavy duty ball bearings.
Epoxy painted AISI 1045 Carbon Steel solid shaft (85 mm dia).
Unit dimensions= 2300 mm (Weight) x 3250 mm (Length) x 3000 mm (Height).
Empty weight ≈ 2000 kg.
Full operational weight ≈ 7500 kg.
3 pieces MX1 Units fit in 40 ft high cube container with lids.
4 pieces MX1 Units fit in semi-trailer truck with lids.
2 years international warranty of PlanetTEK
Ball bearings carry 5-years warranty
